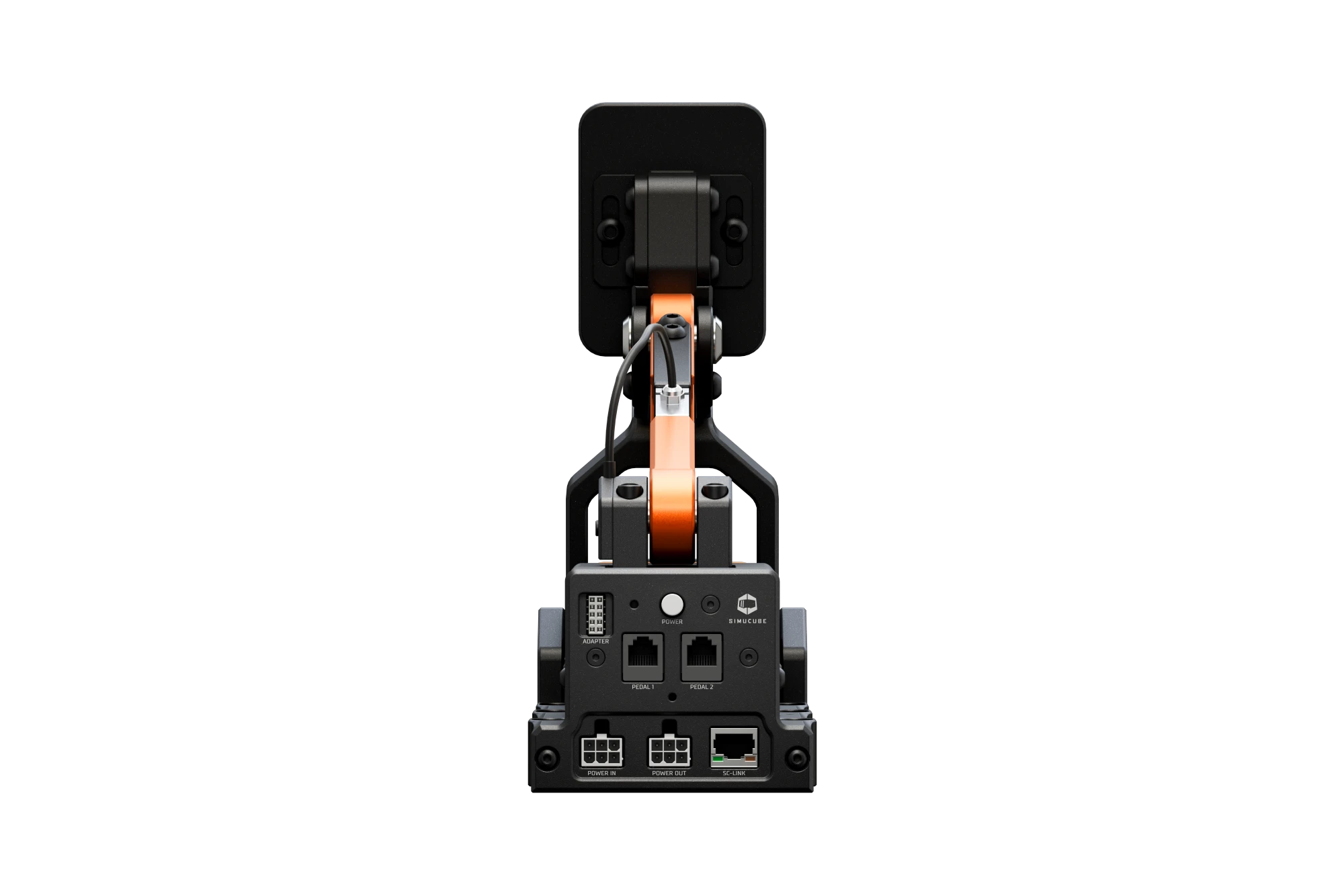

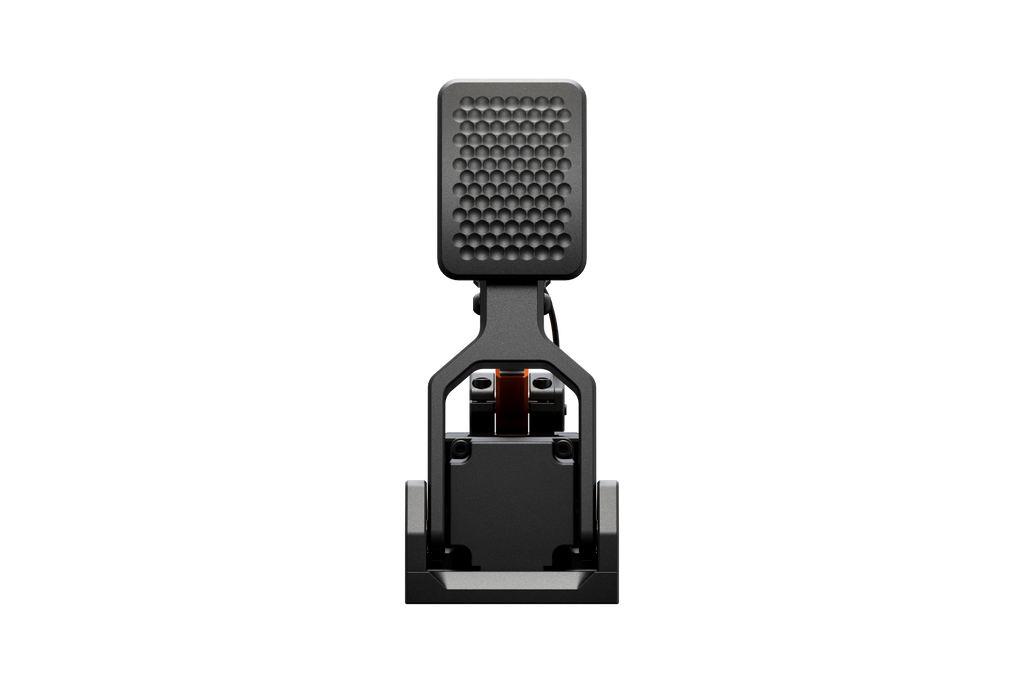

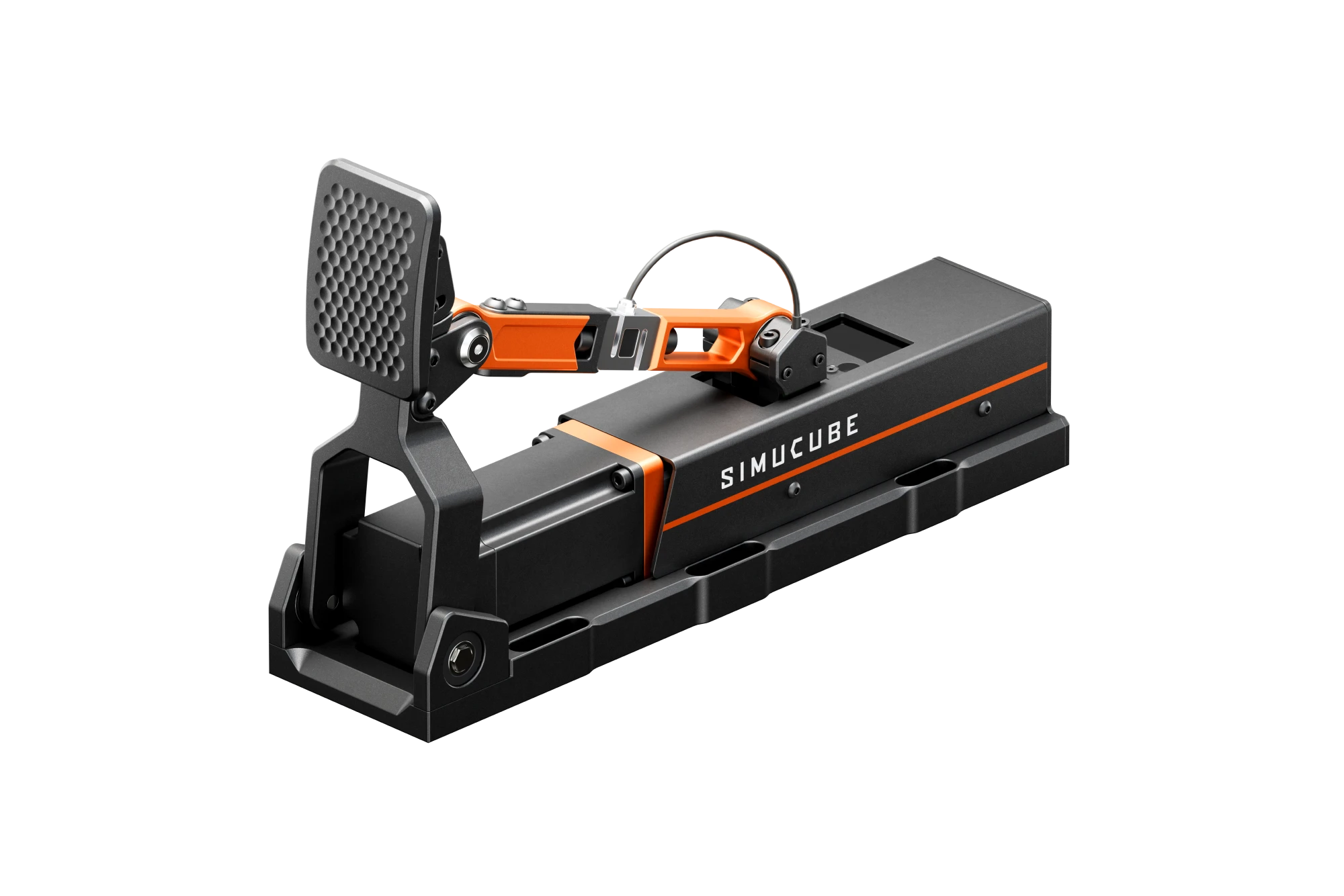

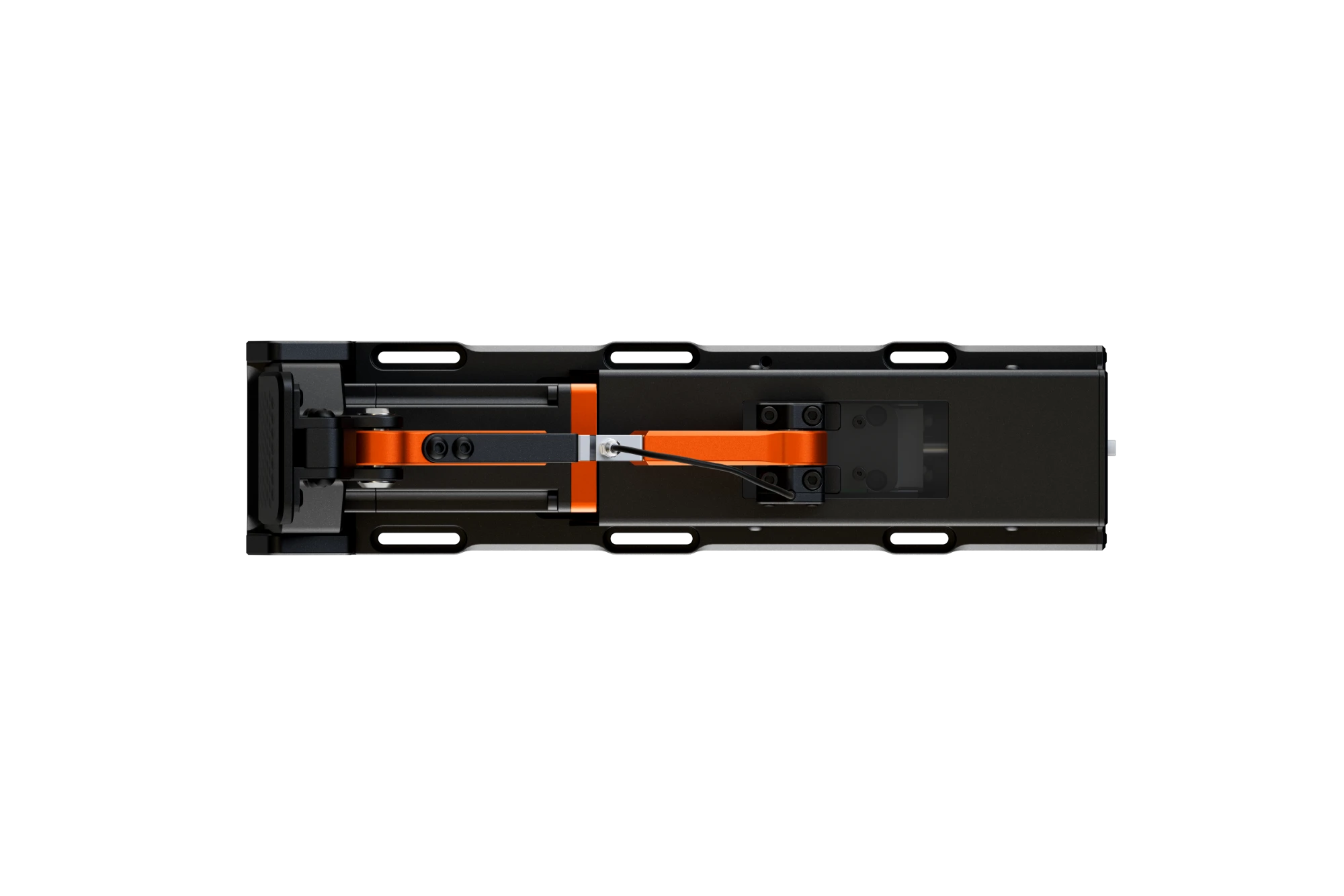

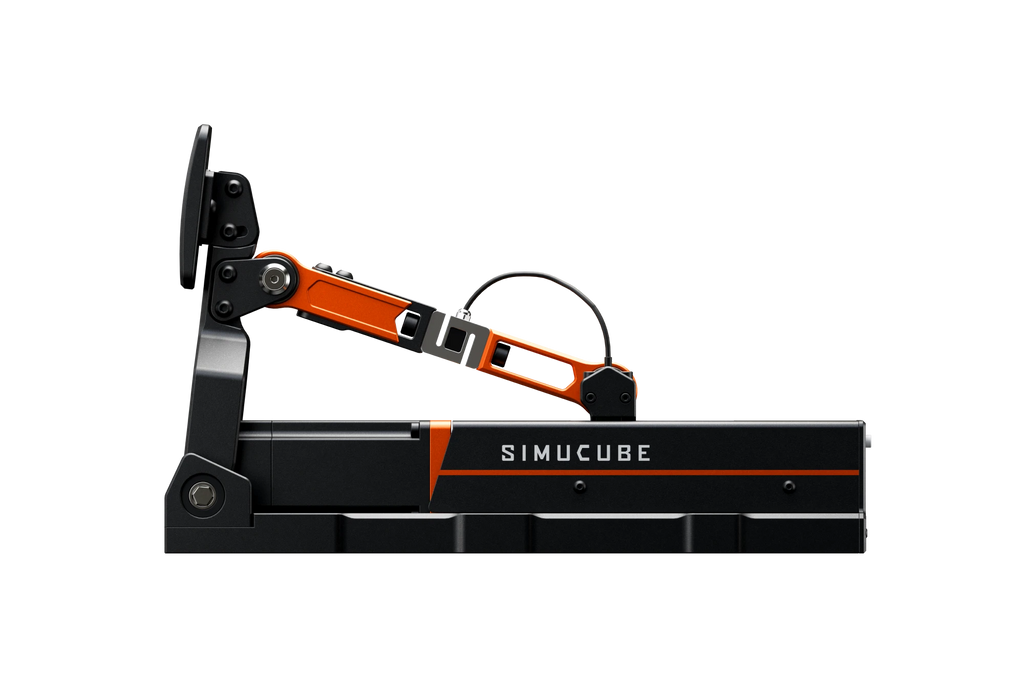

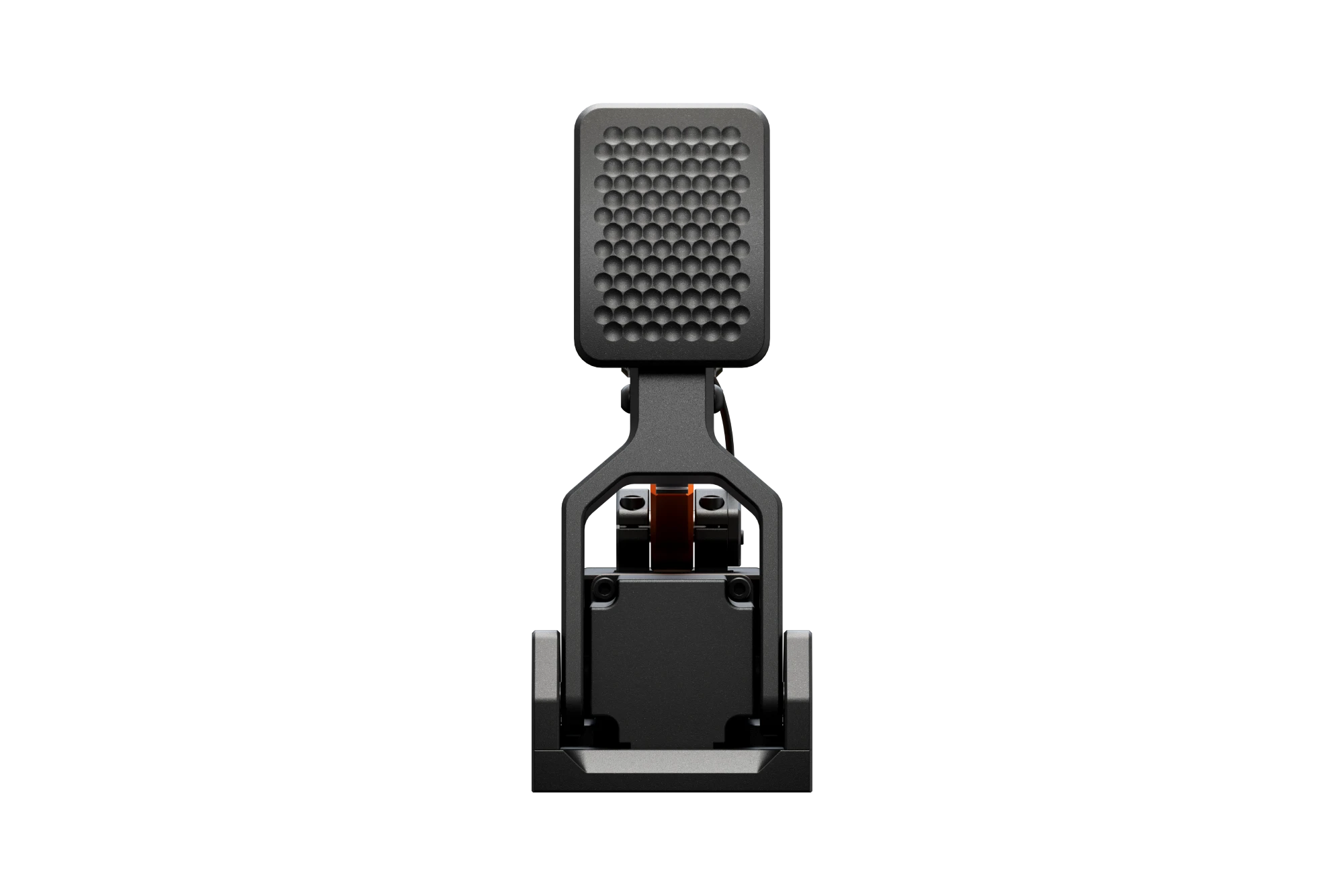

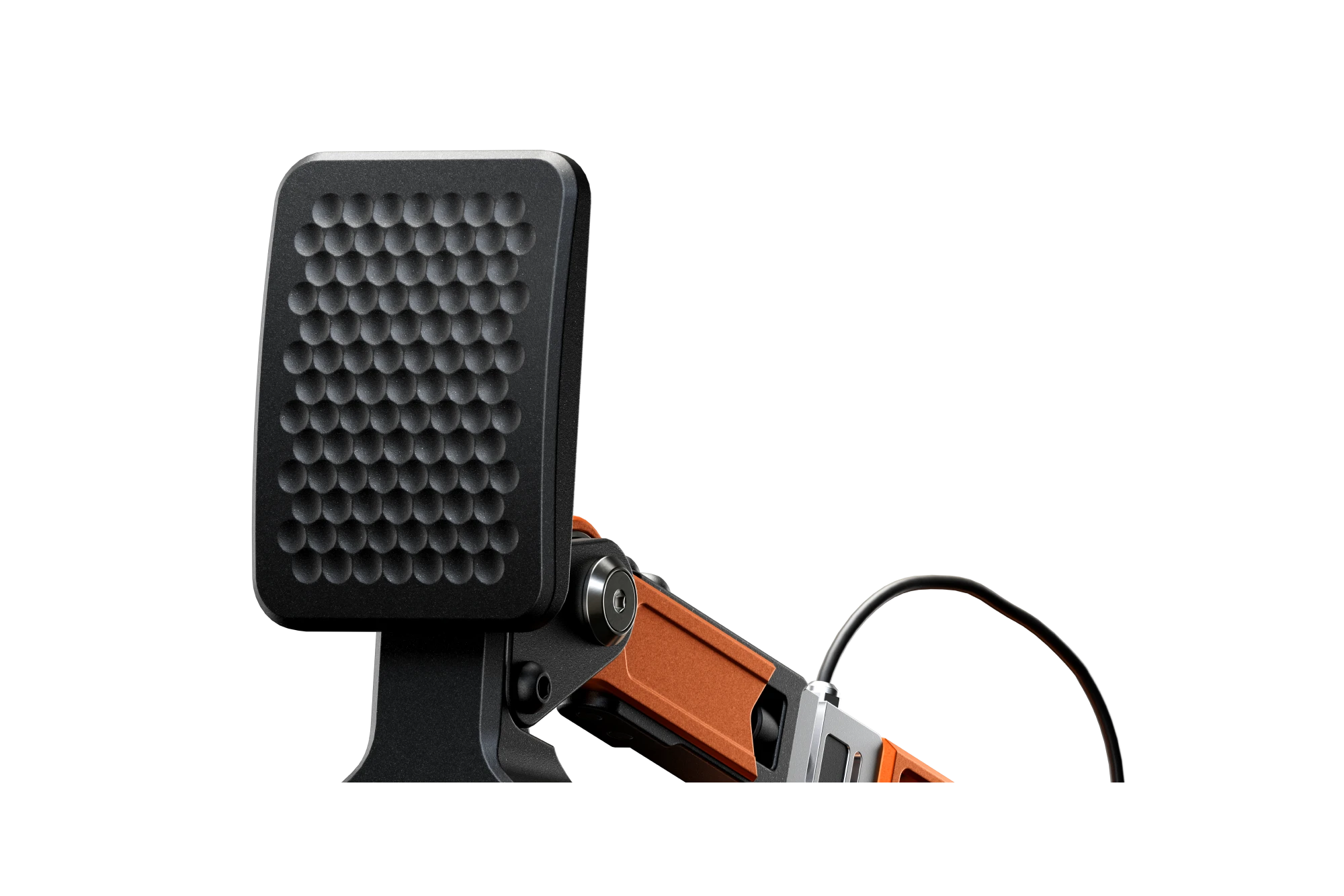

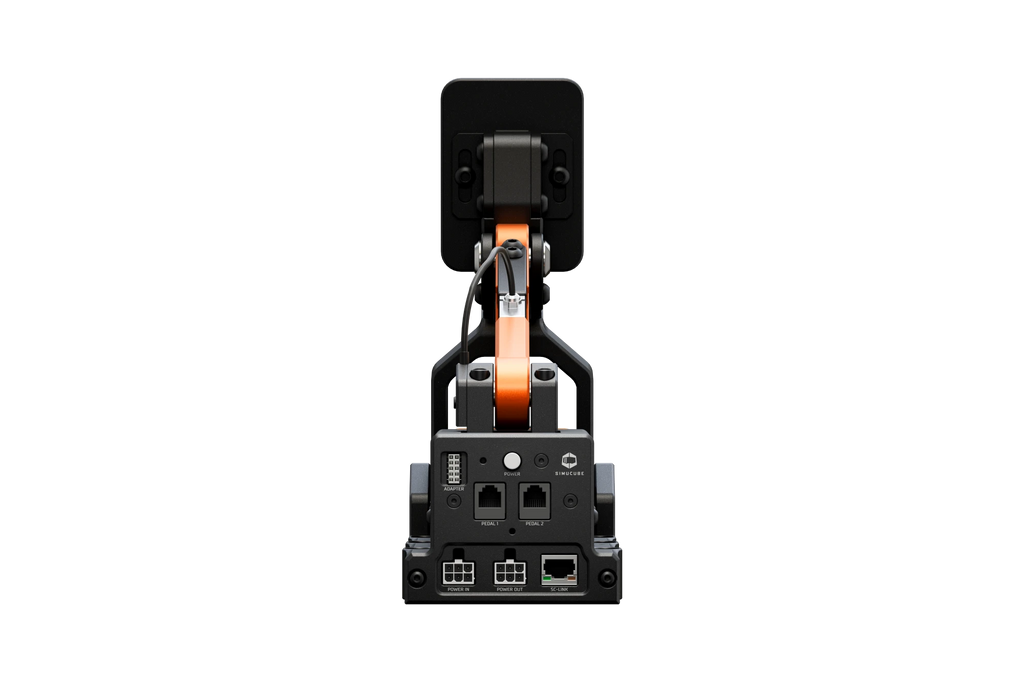

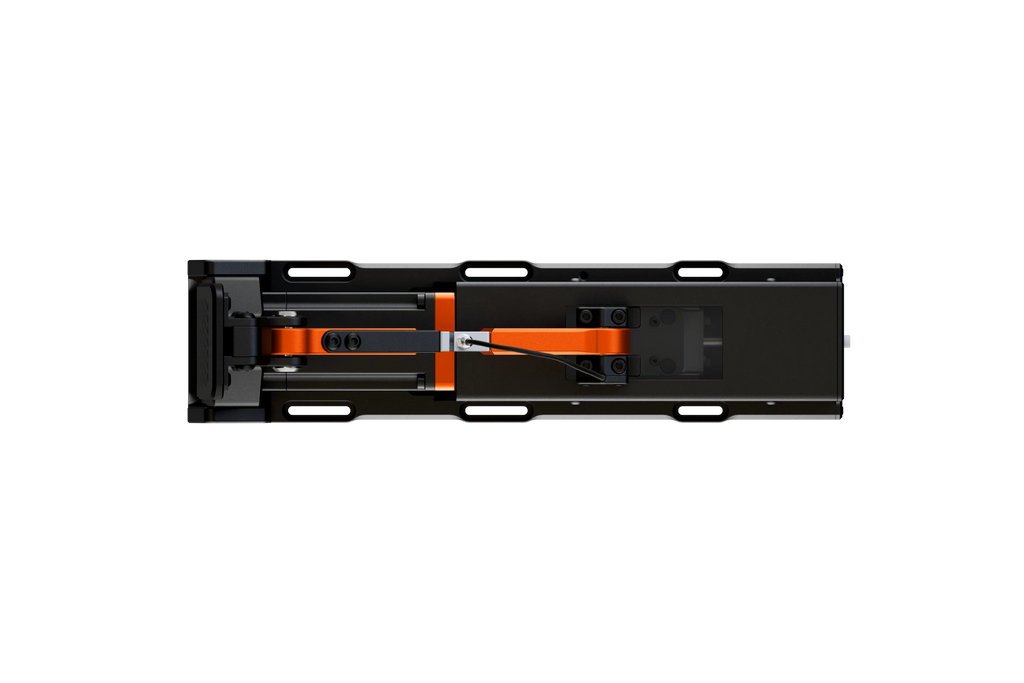

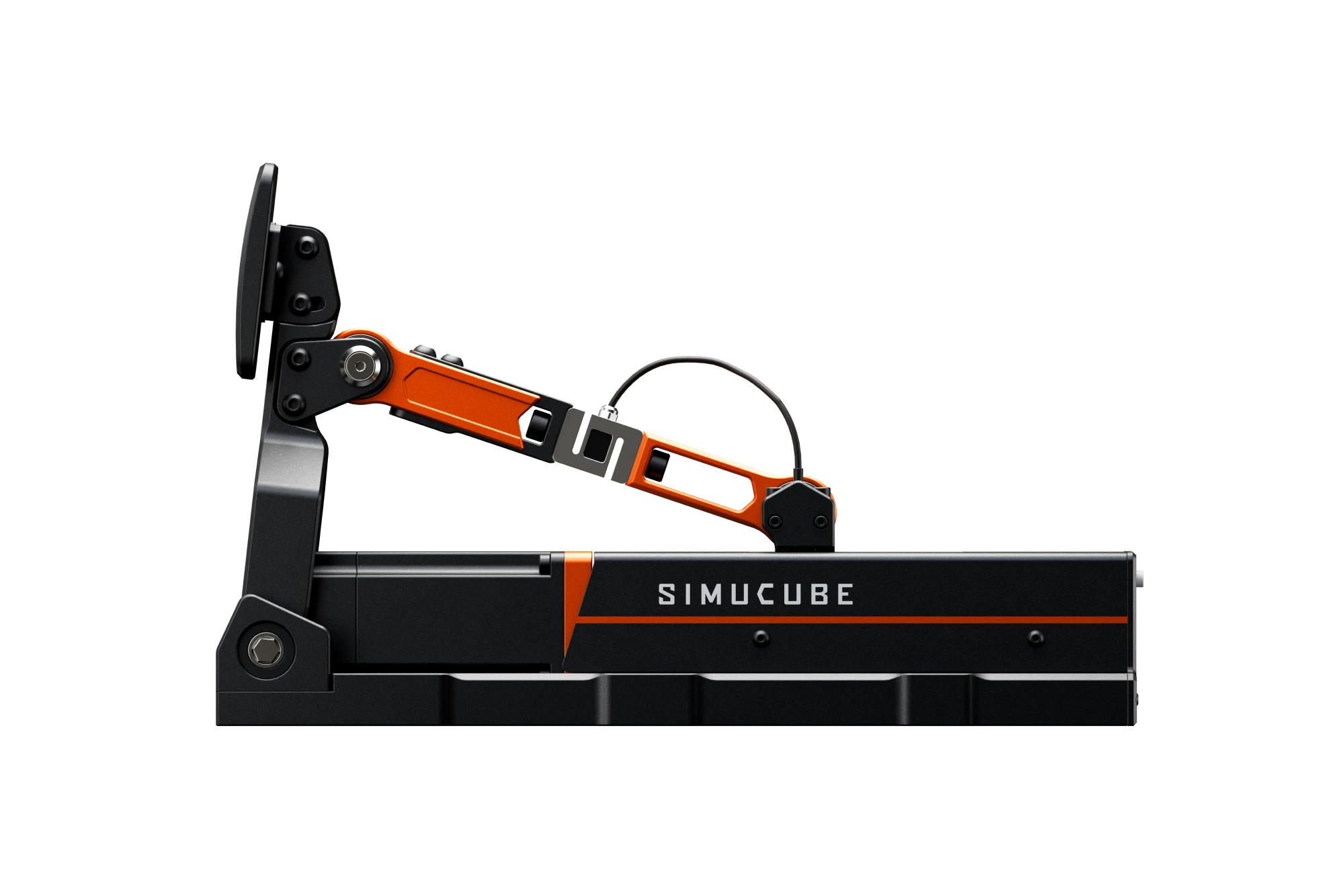

Simucube ActivePedal Ultimate

Force feedback. In a pedal. The Simucube ActivePedal Ultimate is a fully active brake with no passive springs or elastomers — 170 kg of programmable force, driven by the same direct-drive thinking behind Simucube's wheelbases.

• Automatic profile switching between cars and simulators
• Adjust pedal feel — pressure, travel, curve, damping, friction — from the cockpit
• Real-world effects: ABS, G-force, traction control, RPM feedback
• Configurable as brake, throttle or clutch; ready-made profiles from pro drivers

Technical details

• Max force: 170 kg (high) / 120 kg (medium)
• Max travel: 62 mm / 79 mm  ·  Height adj: 20 mm  ·  Offset adj: 25 mm  ·  Angle adj: 18°
• Dimensions: 100 × 250 × 400 mm  ·  Weight: 6 kg  ·  Mounting: 6× M5 slots
• Warranty: 5 years

In the box

ActivePedal Ultimate, power supply, Simucube Link, USB cable, Ethernet RJ45, fixing screws, Torx key, quick-start guide.

Add-on units (set of 2 / 3) share a single power supply and connect over the Simucube Link.
